JVC Advanced Technology

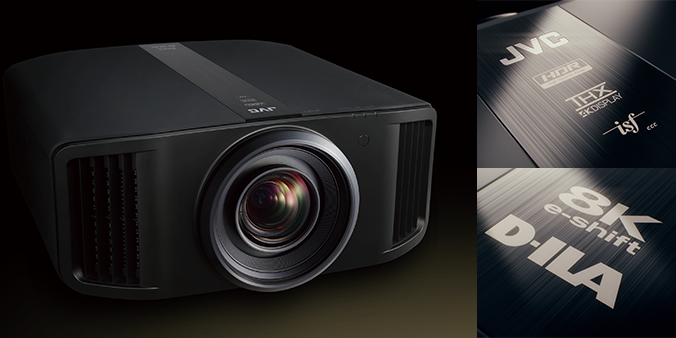

Stately Form that Matches the New Generation Model

Adopting the legendary centre paneling of the D-ILA projectors, the new form has no decorative lines but only features simplicity for the pursuit its functionality. Symmetrical design centred on the lens that is set in the core conveys a stately form with a sharp impression that fits the new generation models.

New Generation Model

Colour Management System with 6-Axis Matrix

A 6-axis matrix of red, green, blue, cyan, magenta, and yellow enables the precise adjustment of hue, saturation, and intensity. Only the colour being adjusted will be shown in colour while the others are grey-toned, making operation more intuitive.

Auto-calibration Function

Using an optical sensor and a proprietary software*9, optimum calibration can be applied in just a few easy steps to match the changes in optical characteristics caused by the installation situation of the projector. Auto-Calibration optimises all essential elements found in the image, including colour balance, gamma characteristics, colour space, and colour tracking.

*9: An optical sensor and proprietary software, which is downloadable from JVC website, are required to perform auto calibration function. Refer to the JVC website for details.

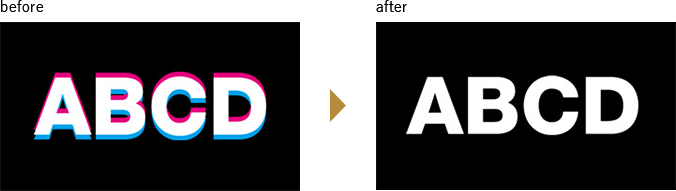

Pixel Adjust Function

The Pixel Adjust function allows users to precisely correct colour deviation in 1/16-pixel increments*.It is also capable of segmenting the entire screen into 121 points and adjusting them individually to realise clearer video without colour deviation. Two settings can be stored in the memory.

Pixel Adjust function
121-point adjustment

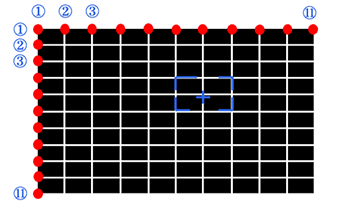

121-point adjustment (concept diagram)
Adjustments are made by placing the cursor on a point that needs to be corrected.
