Specifications

Specifications Main Features Projection Distance Optional Accessories Screen Adjustment Modes

Specifications

		DLA-NX9	DLA-N7	DLA-N5
Device		0.69-inch Native 4K D-ILA Device (4096x2160) x3
8K/e-shift		●	-
Display Resolution		8192 x 4320	4096 x 2160
Lens		x2 Motorised Zoom & Focus; All-glass Lens with 100 mm diameter	x2 Motorised Zoom & Focus; All-glass Lens with 65 mm diameter
Lens Shift		±100% Vertical and ±43% Horizontal (motorised) *In 16:9 aspect ratio mode	±80% Vertical and ±34% Horizontal (motorised) *In 16:9 aspect mode
Projection Display Size		60 inch - 300 inch (diagonal)	60 inch - 200 inch (diagonal)
Light Source Lamp		NSH 265 W (lamp life: approx. 4,500 hours when the lamp is in Low mode)
Brightness		2,200 lm	1,900 lm	1,800 lm
Contrast Ratio	Dynamic	1,000,000:1	800,000:1	400,000:1
Contrast Ratio	Native	100,000:1	80,000:1	40,000:1
DCI-P3 Colour Gamut		●		-
Input Terminal	HDMI	2 (3D/Deep Colour/HDCP)
Input Terminal	TRIGGER	1 (Mini Jack, DC12V/100mA)
Output Terminals	3D SYNCHRO	1 (Mini-Din 3pin)
Output Terminals	RS-232C	1 (Dsub 9pin)
Control Terminals	LAN	1 (RJ-45)
Service Terminal	SERVICE	1 (USB Type A) (for firmware update)
Video Input Signal Format	Digital	480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840x2160p 60/50/30/25/24, 4096x2160p 60/50/30/25/24
PC Input Signal Format	Digital (HDMI)	VGA/SVGA/XGA/WXGA/WXGA+/SXGA/WSXGA+
3D Format	Frame Packing	720p 60/50, 1080p 24
	Side-by-Side (half)	720p 60/50, 1080p 60/50/24, 1080i 60/50
	Top & Bottom	720p 60/50, 1080p 24
Power Consumption	Projector in use	400 W
	Standby	Eco-mode: 0.3W
	Networked standby	1.3W(LAN), 1.0W(RS232C),1.3W(LAN and RS232C)
	Switchover time	20 min. (To standby or networked standby; default)
Fan Noise		24dB (When the lamp is in Low Mode)
Power Requirement		AC100-240 V, 50/60 Hz
Dimension (W x H x D, including feet)		500 x 234 x 518 mm	500 x 234 x 495 mm
Weight (net)		21.8 kg	19.8 kg	19.6 kg

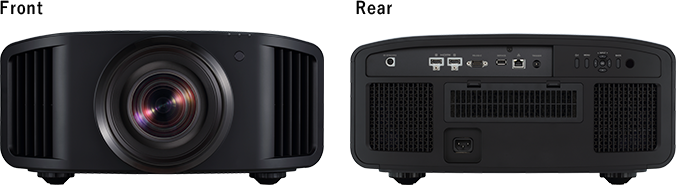

DLA-NX9 Appearance

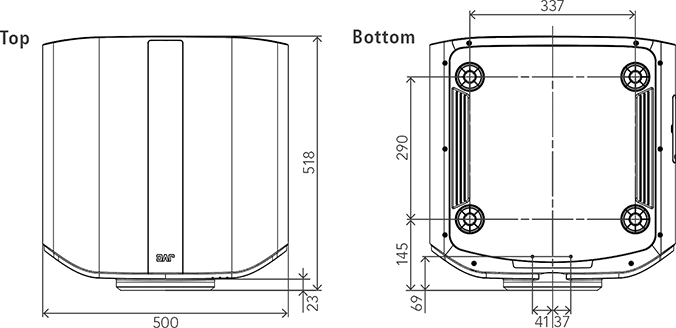

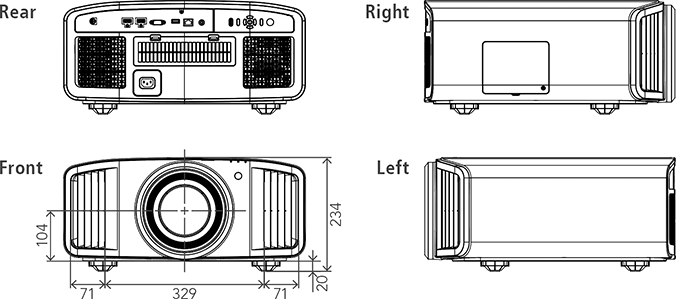

DLA-NX9 External Dimensions (Unit : mm)

DLA-N7/DLA-N5 Appearance

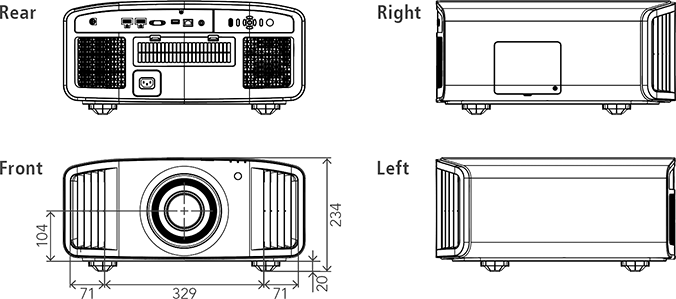

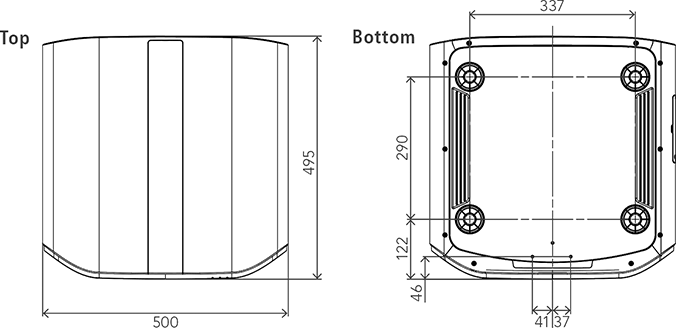

DLA-N7/DLA-N5 External Dimensions (Unit : mm)

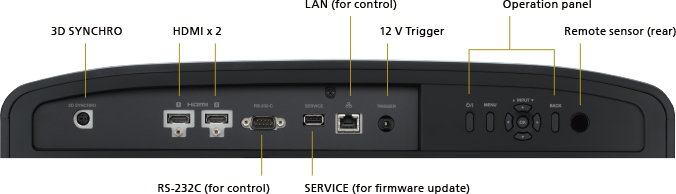

Terminals on the rear

Main Features

		DLA-NX9	DLA-N7	DLA-N5
HDR	HDR Support	● (HDR10/HLG)	● (HDR10/HLG)	● (HDR10/HLG)
	Mastering Info Display	● (Max CLL/Max FALL)	● (Max CLL/Max FALL)	● (Max CLL/Max FALL)
	Frame Adapt HDR^*1	●	●	●
	Theater Optimizer^*1	●	●	●
	Auto Tone Mapping	●	●	●
3D Support		●	●	●
MPC (Multiple Pixel Control)		●	●	●
Real Colour Imaging Technology		●	●	-
Xenon Light Source Colour (Colour temperature)		●	●	-
THX 4K Display Certification		●	-	-
Clear Motion Drive		●	●	●
Motion Enhance		●	●	●
Low Latency Mode		●	●	●
Auto Calibration		●	●	●
Installation Mode		● (10 memories)	● (10 memories)	● (10 memories)
Screen Adjustment Mode		● (168 modes)	● (168 modes)	● (168 modes)

*1: Supports software version v3.50 and later versions.

Projection Distance

DLA-NX9 Projection Distance

Display size 3840 x 2160 (16:9)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,328	747	1.75	3.61
70	1,550	872	2.06	4.23
80	1,771	996	2.37	4.84
90	1,992	1,121	2.67	5.46
100	2,214	1,245	2.98	6.07
110	2,435	1,370	3.28	6.69
120	2,657	1,494	3.59	7.30
130	2,878	1,619	3.90	7.92
140	3,099	1,743	4.20	8.53
150	3,321	1,868	4.51	9.15
160	3,542	1,992	4.81	9.76
170	3,763	2,117	5.12	10.38
180	3,985	2,241	5.43	10.99
190	4,206	2,366	5.73	11.61
200	4,428	2,491	6.04	12.22
210	4,649	2,615	6.34	12.84
220	4,870	2,740	6.65	13.45
230	5,092	2,864	6.96	14.07
240	5,313	2,989	7.26	14.68
250	5,535	3,113	7.57	15.30
260	5,756	3,238	7.87	15.91
270	5,977	3,362	8.18	16.53
280	6,199	3,487	8.48	17.14

Display size (2:35:1)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,402	597	1.86	3.82
70	1,636	696	2.18	4.47
80	1,870	796	2.5	5.12
90	2,103	895	2.83	5.77
100	2,337	995	3.15	6.41
110	2,571	1,094	3.47	7.06
120	2,805	1,193	3.79	7.71
130	3,038	1,293	4.12	8.36
140	3,272	1,392	4.44	9.01
150	3,506	1,492	4.76	9.66
160	3,740	1,591	5.09	10.31
170	3,973	1,691	5.41	10.96
180	4,207	1,790	5.73	11.61
190	4,441	1,890	6.05	12.26
200	4,674	1,989	6.38	12.91
210	4,908	2,089	6.7	13.56
220	5,142	2,188	7.02	14.21
230	5,376	2,287	7.35	14.85
240	5,609	2,387	7.67	15.5
250	5,843	2,486	7.99	16.15
260	6,077	2,586	8.32	16.8
270	6,310	2,685	8.64	17.45

Display size 4096 x 2160 (17:9)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,348	711	1.67	3.43
70	1,573	829	1.96	4.02
80	1,797	948	2.25	4.60
90	2,022	1,066	2.54	5.19
100	2,247	1,185	2.83	5.77
110	2,471	1,303	3.12	6.36
120	2,696	1,422	3.41	6.94
130	2,921	1,540	3.70	7.53
140	3,145	1,659	3.99	8.11
150	3,370	1,777	4.28	8.70
160	3,595	1,896	4.58	9.28
170	3,819	2,014	4.87	9.87
180	4,044	2,133	5.16	10.45
190	4,269	2,251	5.45	11.04
200	4,493	2,370	5.74	11.62
210	4,718	2,488	6.03	12.21
220	4,943	2,607	6.32	12.79
230	5,168	2,725	6.61	13.38
240	5,392	2,844	6.90	13.97
250	5,617	2,962	7.20	14.55
260	5,842	3,080	7.49	15.14
270	6,066	3,199	7.78	15.72
280	6,291	3,317	8.07	16.31
290	6,516	3,436	8.36	16.89
300	6,740	3,554	8.65	17.48

* Projection distances are design specifications, so there is ±5% variation.

DLA-N7/DLA-N5 Projection distance

Display size 3840 x 2160 (16:9)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,328	747	1.88	3.85
70	1,550	872	2.20	4.50
80	1,771	996	2.52	5.15
90	1,992	1,121	2.84	5.80
100	2,214	1,245	3.16	6.45
110	2,435	1,370	3.49	7.10
120	2,657	1,494	3.81	7.75
130	2,878	1,619	4.13	8.40
140	3,099	1,743	4.45	9.05
150	3,321	1,868	4.77	9.70
160	3,542	1,992	5.09	10.35
170	3,763	2,117	5.41	11.00
180	3,985	2,241	5.73	11.65
190	4,206	2,366	6.05	12.30
200	4,428	2,491	6.38	12.95

Display size (2:35:1)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,402	597	1.99	4.07
70	1,636	696	2.33	4.76
80	1,870	796	2.67	5.44
90	2,103	895	3.00	6.13
100	2,337	995	3.34	6.81
110	2,571	1,094	3.68	7.50
120	2,805	1,193	4.02	8.18
130	3,038	1,293	4.36	8.87
140	3,272	1,392	4.70	9.56
150	3,506	1,492	5.04	10.24
160	3,740	1,591	5.38	10.93
170	3,973	1,691	5.72	11.61
180	4,207	1,790	6.05	12.30

Display size 4096 x 2160 (17:9)			Projection distance
Screen diagonal	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,348	711	1.79	3.66
70	1,573	829	2.09	4.28
80	1,797	948	2.40	4.90
90	2,022	1,066	2.70	5.52
100	2,247	1,185	3.01	6.14
110	2,471	1,303	3.31	6.75
120	2,696	1,422	3.62	7.37
130	2,921	1,540	3.92	7.99
140	3,145	1,659	4.23	8.61
150	3,370	1,777	4.54	9.23
160	3,595	1,896	4.84	9.84
170	3,819	2,014	5.15	10.46
180	4,044	2,133	5.45	11.08
190	4,269	2,251	5.76	11.70
200	4,493	2,370	6.06	12.32

* Projection distances are design specifications, so there is ±5% variation.

Optional Accessories

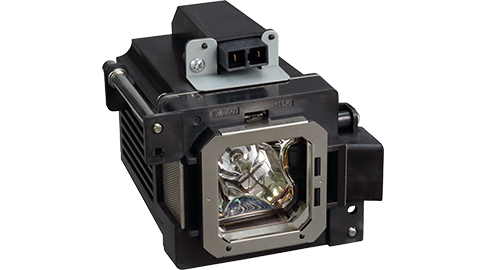

Replacement Lamp

PK-L2618U

3D Option

RF 3D Glasses

PK-AG3

Rechargeable Type
Lightweight-only 38g
Continuous operation approx.100H
Features 2D modes
Range of use: 10m (10 meter radius from the 3D Synchro Emitter)
Dimensions 170 x 40 x 165 mm (WxHxD)

RF 3D Synchro Emitter

PK-EM2

Wireless (direct connection with the projector)
Lightweight-only 20g
Dimensions 48.9 x 14.5 x 65 mm (WxHxD)

Screen Adjustment Modes

Brand	Screen	Mode
-	-	0^*
	-	1^*
	-	2^*
	-	3^*
CARADA	Classic Cinema White (Gs 1.0)	4
	Brilliant White (Gs 1.4)	5
	High Contrast Gray (Gs 0.8)	6
DA-LITE	MATTE WHITE	7
	HIGH CONTRAST MATTE WHITE	8
	VIDEO SPECTRA 1.5	9
	SILVER MATTE	10
	HIGH POWER	11
	DA-MAT	12
	HIGH CONTRAST DA-MAT	13
	CINEMA VISION	14
	HIGH CONTRAST CINEMA VISION	15
	PEARLESCENT	16
	DUAL VISION	17
	AUDIO VISION	18
	HIGH CONTRAST AUDIO VISION	19
	HIGH CONTRAST CINEMA PERL	20
	3D VIRTUAL GREY	21
	HD PROGRESSIVE 0.6	22
	HD PROGRESSIVE 0.9	23
DIGIS	Hight Contrast Gray (HCG)	141
DIGIS	Mat Whaite (MW)	142
DNP	Supernova 08-85	104
DNP	Supernova 23-23	105
DRAPER	FLEXABLE MATTE WHITE	24
	FIBERGLASS MATTE WHITE	25
	HIGH CONTRAST GREY	26
	FLEXIBLE M 1300	27
	HIGH DEF GREY	28
	M 2500	29
EASTONE	E2S	30
	ESECO	31
	BF-3D Reference	96
ELITE	CineWhite	89
	PowerGain	90
	Elite MaxWhite	91
	MaxWhite FG	92
	SilverGrey	93
ELUNE VISION	Reference PureBright 4K 240	109
	Reference Studio 4K 80	110
	Reference Studio 4K 100	111
	Reference Studio AudioWeave 4K	112
	AURORA 4K 1.3	134
	AURORA PERFORATED 4K 1.3	136
	REFERENCE AUDIOWEAVE 4K+	137
GOO SYSTEMS	Reference White 2.0	166
	High Contrast 2.0	167
	Max Contrast 2.0	168
	Ultra Max Theme Park 2.0	169
GRANDVIEW	GRANDVIEW WHITE	37
	WM5	153
	GM5	154
	WP5	155
	WB5	156
	WB7	157
	BG7	158
	GG3	159
	WW3	160
	RE3	161
	AT5	162
	AT6	163
	AT7	164
	AW6	165
Harkness Screens	Matt Plus mini Perf	170
KAUBER	Clear Vision (CLV)	143
	Microperforated White (MPERFW)	144
	White Flex (WFLEX)	145
	Gray Flex (GFLEX)	146
	Gray Pro (GPRO)	147
KIKUCHI	WA	32
	AM	33
	AG	34
	PG	35
	MALIBU	36
	GRACE MATT 100	101
	WAC	102
	SILVER	107
	Dressty 4K	115
Lambda	Studio SCIENCE UHD 1.0 WHITE	135
MicroliteScreen	FRONT 1.2	122
MicroliteScreen	FRONT 2.4	123
MULTIVISION	Cinecitta 240	149
	Woven sound fabric	150
	High Contrast	151
	Mattpreview	152
ORAY	B3100100	38
	B1100100 32/100	39
	B1100100 25/100	40
	BC100100	41
	N3100100 MICROPERF	42
	N3100100 SUPER BLANC	43
OS	WG103	44
	WG107G	45
	WG201	46
	WG206	47
	WG207	48
	WT101	49
	WF201	50
	WF202	51
	WF203	95
	WF301	106
	WF302	108
	SunnyWhite	52
	BS101	53
	BU102	54
	PP201	55
	BU202	94
	BU201	103
	HF102	148
PROCOLOR	MATTE WHITE C	56
PROCOLOR	MATTE WHITE P	57
SAYMOUR AV	CENTER STAGE XD	129
	CENTER STAGE UF	130
	GLACIER WHITE	131
	MATINEE BLACK	132
	MATINEE SILVER	133
SAYMOUR SCREEN EXCELLENCE	ENLIGHTOR BRIGHT	124
	ENLIGHTOR 4K	125
	AMBIENT VISIONAIRE 1.2	126
	AMBIENT VISIONAIRE 1.3	127
	AMBIENT VISIONAIRE 2.1	128
SCREEN RESEARCH	ClearPix2	58
SI	Lunar HD.85	59
	Solar HD1.3	60
	Gamma HD1.1	61
	Gamma Maestro HD1.1	62
	Lunar Maestro HD.85	63
	Black Diamond II HD0.8 Black	64
	Black Diamond II HD1.4 Black	65
	SLATE .8	113
	SLATE 1.2	114
	Unity	172
Stewart	SnowMatte 100	66
	Ultramatte 130	67
	Ultramatte 150	68
	Ultramatte 200	69
	StudioTek 100	70
	StudioTek 130 G3	71
	GrayMatte 70	72
	FireHawk SST	73
	FireHawk G3	74
	FireHawk G4	120
	GrayHawk RS	75
	GrayHawk RS G4	116
	SILVER 3D	97
	SILVER 5D	98
	Tela 80	117
	Tiburon G2	118
	Reflections 3D	121
	Reflections Active 170 3D	99
	HARMONY	138
	ESTERO 100	139
	NEVE	140
	Phantom HALR	171
STUMPFL	FLEX WHITE CI	100
Theaterhouse	White Matte HD	76
Theaterhouse	Theater Matte HD	77
VUTEC	MATTEWHITE	78
	BRIGHT WHITE	79
	VUFLEX PRO	80
	PEARL BRIGHT	81
	GREYDOVE	82
	SOUND SCREEN-5	83
	SOUND SCREEN-15	84
	GREYDOVE SOUND SCREEN	85
	TWIN VU	86
	PREFORATED LEADER	87
	SILVER STAR	88

* If none of the above applies,please select from 0 to 3
0:OFF
1:Correct to give a reddish tinge
2:Correct to give a greenish tinge
3:Correct to give a bluish tinge
* The Screen Adjustment Mode Table is that recommended by JVC.
* The exact results from any given the Screen Adjustment Mode Table will be affected to some degree by the installation environment, so this table should be used only as a guide.
* The mode used for any given screen is not a reflection of the quality of the screen.
