D-ILA Projector Series
CONCEPT
The rise of new devices has always been driven by innovation. In 2021, JVC proudly introduces a line-up of new projectors featuring the world's first 8K60p/4K120p signal input*1 and 8K/e-shiftX technology, a proprietary BLU-Escent laser diode light source to project the high-resolution 8K image with full depth and dimensionality, and the latest HDR10+ format compatibility.
8K, Laser, HDR are the keywords that describe where we stand today, and they feature prominently in JVC's latest line-up. Welcome to the dawn of the New Ultimate.
*1: As a home theatre projector, as of September 2021; according to a research by JVCKENWOOD.
FEATURES
PRODUCTS
DLA-NZ9
- 8K60p/4K120p input with 8K/e-shiftX
- 0.69-in 4K D-ILA
- 100mm High Resolution All Glass Lens
- BLU-Escent(Laser Light source) and Ultra-High Contrast Optics realizes 3,000 lm Light Output
- 100,000:1 Native Contrast ∞:1 Dynamic Contrast
- HDR(HDR10+/Frame Adapt HDR/HLG)
- Wide Colour Gamut (DCI cover)
- isf ccc certification
DLA-NZ8
- 8K60p/4K120p input with 8K/e-shiftX
- 0.69-in 4K D-ILA
- 65mm High Resolution All Glass Lens
- BLU-Escent(Laser Light source) and Ultra-High Contrast Optics realizes 2,500 lm Light Output
- 80,000:1 Native Contrast ∞:1 Dynamic Contrast
- HDR(HDR10+/Frame Adapt HDR/HLG)
- Wide Colour Gamut (DCI cover)
- isf ccc certification
DLA-NZ7
- 8K60p/4K120p input with 8K/e-shift
- 0.69-in 4K D-ILA
- 65mm High Resolution All Glass Lens
- BLU-Escent(Laser Light source) realizes 2,200 lm Light Output
- 40,000:1 Native Contrast ∞:1 Dynamic Contrast
- HDR(HDR10+/Frame Adapt HDR/HLG)
- isf ccc certification
DLA-N5
- 4K60p input
- 0.69-in 4K D-ILA
- 65mm High Resolution All Glass Lens
- 1,800lm Light Output
- 40,000:1 Native Contrast 400,000:1 Dynamic Contrast
- HDR(Frame Adapt HDR/HLG)
- isf ccc certification
- Available 2 colours
SPEC
Specifications
Specifications
| DLA-NZ9 | DLA-NZ8 | DLA-NZ7 | DLA-N5 | ||
|---|---|---|---|---|---|
| Device | 0.69-inch Native 4K D-ILA Device (4096x2160) x3 | ||||
| e-shift | 8K/e-shiftX | 8K/e-shift | - | ||
| Display Resolution | 8192 x 4320 | 4096 x 2160 | |||
| Lens | Type | x2 Motorised Zoom & Focus, All-glass Lens | |||
| Diameter | 100 mm | 65 mm | |||
| Lens Shift | Vertical/Horizontal (motorised) *In 16:9 aspect ratio mode | ±100% / ±43% | ±80% / ±34% | ||
| Projection Display Size | 60 inch - 300 inch (diagonal) | 60 inch - 200 inch (diagonal) | |||
| Light Source | Laser Diode | NSH 265 W | |||
| Brightness | 3,000 lm | 2,500 lm | 2,200 lm | 1,800 lm | |
| Contrast Ratio | Dynamic | ∞:1 | 400,000:1 | ||
| Native | 100,000:1 | 80,000:1 | 40,000:1 | 40,000:1 | |
| DCI-P3 Colour Gamut | ● | - | - | ||
| Input Terminal | HDMI | 2 (48Gbps, HDCP2.3, CEC does not support) | 2 (18Gbps, HDCP2.3, CEC does not support) | ||
| TRIGGER | 1 (Mini Jack, DC12V/100mA) | ||||
| Output Terminals | 3D SYNCHRO | 1 (Mini-Din 3pin) | |||
| RS-232C | 1 (Dsub 9pin) | ||||
| Control Terminals | LAN | 1 (RJ-45) | |||
| Service Terminal | SERVICE | 1 (USB Type A) (for firmware update) | |||
| Video Input Signal Format | Digital | 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 3840x2160p 120/100/60/50/30/25/24, 4096x2160p 120/100/60/50/30/25/24, 7680x4320p 60/50/30/25/24 |
480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840x2160p 60/50/30/25/24, 4096x2160p 60/50/30/25/24 |
||
| PC Input Signal Format | Digital (HDMI) | VGA/SVGA/XGA/WXGA/WXGA+ SXGA/WSXGA+/UXGA/WUXGA/WQHD(60)/WQHD(120) |
VGA/SVGA/XGA/WXGA WXGA+/SXGA/WSXGA+ |
||
| 3D Format | Frame Packing | 720p 60/50, 1080p 24 | |||
| Side-by-Side (half) | 720p 60/50, 1080p 60/50/24, 1080i 60/50 | ||||
| Top & Bottom | 720p 60/50, 1080p 24 | ||||
| Power Consumption | Projector in use | 440 W | 440 W | 420 W | 400 W |
| Standby | Eco-mode: 0.3W | Eco-mode: 0.3W | Eco-mode: 0.2W | Eco-mode: 0.3W | |
| Networked standby | 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) |
1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) |
1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) |
1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C) |
|
| Switchover time | Approx. 15 min. (To standby or networked standby; default) | Approx. 15 min. (To standby or networked standby; default) | Approx. 15 min. (To standby or networked standby; default) | 20 min. (To standby or networked standby; default) | |
| Fan Noise | 24dB (When the Low Mode) | 24dB (When the Low Mode) | 24dB (When the Low Mode) | 24dB (When the Low Mode) | |
| Power Requirement | AC100-240 V, 50/60 Hz | ||||
| Dimension (W x H x D, including feet) | 500 x 234 x 528 mm | 500 x 234 x 505 mm | 500 x 234 x 495 mm | ||
| Weight (net) | 25.3 kg | 23.1 kg | 22.5 kg | 19.6 kg | |
DLA-NZ9 Appearance
DLA-NZ9 External Dimensions (Unit : mm)
DLA-NZ8/DLA-NZ7 Appearance
DLA-NZ8/DLA-NZ7 External Dimensions (Unit : mm)
DLA-N5 Appearance
DLA-N5 External Dimensions (Unit : mm)

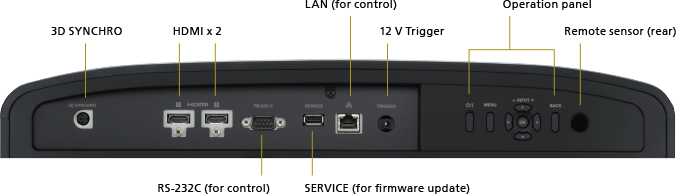

Terminals on the rear
Main Features
Main Features
| DLA-NZ9 | DLA-NZ8 | DLA-NZ7 | DLA-N5 | ||
|---|---|---|---|---|---|
| 8K/e-shiftX (4-direction shift) | ● | ● | - | - | |
| 8K/e-shift (2-direction shift) | - | - | ● | - | |
| 8K60p Input | ● | ● | ● | - | |
| 4K120p input | ● | ● | ● | (4K60p input only) | |
| Lens Diameter | 100 mm | 65 mm | 65 mm | 65 mm | |
| Light Source | Blu-Escent Laser Diode | Blu-Escent Laser Diode | Blu-Escent Laser Diode | NSH 265 W | |
| Brightness | 3,000 lm | 2,500 lm | 2,200 lm | 1,800 lm | |
| 0.69-inch 4K D-ILA Device | ● | ● | ● | ● | |
| Ultra-High Contrast Optics | ● | ● | - | - | |
| Contrast Ratio | Dynamic | ∞:1 | 400,000:1 | ||
| Native | 100,000:1 | 80,000:1 | 40,000:1 | 40,000:1 | |
| Cinema Filter (DCI-P3) | ● | ● | - | - | |
| HDR | HDR10+ | ● | ● | ● | - |
| HLG | ● | ● | ● | ● | |
| Mastering Info Display | ● (Max CLL/Max FALL) | ● (Max CLL/Max FALL) | ● (Max CLL/Max FALL) | ● (Max CLL/Max FALL) | |
| Frame Adapt HDR*1 | ● | ● | ● | ● | |
| Theatre Optimizer*1 | ● | ● | ● | ● | |
| Auto Tone Mapping | ● | ● | ● | ● | |
| 3D Support | ● | ● | ● | ● | |
| MPC (Multiple Pixel Control) | ● | ● | ● | ● | |
| Clear Motion Drive | ● | ● | ● | ● | |
| Motion Enhance | ● | ● | ● | ● | |
| Low Latency Mode | ● | ● | ● | ● | |
| Auto Calibration | ● | ● | ● | ● | |
| Installation Mode | ● (10 memories) | ● (10 memories) | ● (10 memories) | ● (10 memories) | |
| isfccc Certification | ● | ● | ● | ● | |
| Screen Adjustment Mode | ● (180 modes) | ● (180 modes) | ● (180 modes) | ● (168 modes) | |
*1: Theater Optimizer can be activated only when the projector's picture mode is set to Frame Adapt HDR.
Projection Distance
DLA-NZ9 Projection Distance
| Screen size aspect ratio: 16:9 | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,328 | 747 | 1.75 | 3.61 |
| 70 | 1,550 | 872 | 2.06 | 4.23 |
| 80 | 1,771 | 996 | 2.37 | 4.84 |
| 90 | 1,992 | 1,121 | 2.67 | 5.46 |
| 100 | 2,214 | 1,245 | 2.98 | 6.07 |
| 110 | 2,435 | 1,370 | 3.28 | 6.69 |
| 120 | 2,657 | 1,494 | 3.59 | 7.30 |
| 130 | 2,878 | 1,619 | 3.90 | 7.92 |
| 140 | 3,099 | 1,743 | 4.20 | 8.53 |
| 150 | 3,321 | 1,868 | 4.51 | 9.15 |
| 160 | 3,542 | 1,992 | 4.81 | 9.76 |
| 170 | 3,763 | 2,117 | 5.12 | 10.38 |
| 180 | 3,985 | 2,241 | 5.43 | 10.99 |
| 190 | 4,206 | 2,366 | 5.73 | 11.61 |
| 200 | 4,428 | 2,491 | 6.04 | 12.22 |
| 210 | 4,649 | 2,615 | 6.34 | 12.84 |
| 220 | 4,870 | 2,740 | 6.65 | 13.45 |
| 230 | 5,092 | 2,864 | 6.96 | 14.07 |
| 240 | 5,313 | 2,989 | 7.26 | 14.68 |
| 250 | 5,535 | 3,113 | 7.57 | 15.30 |
| 260 | 5,756 | 3,238 | 7.87 | 15.91 |
| 270 | 5,977 | 3,362 | 8.18 | 16.53 |
| 280 | 6,199 | 3,487 | 8.48 | 17.14 |
| Screen size aspect ratio: 2.35:1 (Cinematic) | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,402 | 597 | 1.86 | 3.82 |
| 70 | 1,636 | 696 | 2.18 | 4.47 |
| 80 | 1,870 | 796 | 2.5 | 5.12 |
| 90 | 2,103 | 895 | 2.83 | 5.77 |
| 100 | 2,337 | 995 | 3.15 | 6.41 |
| 110 | 2,571 | 1,094 | 3.47 | 7.06 |
| 120 | 2,805 | 1,193 | 3.79 | 7.71 |
| 130 | 3,038 | 1,293 | 4.12 | 8.36 |
| 140 | 3,272 | 1,392 | 4.44 | 9.01 |
| 150 | 3,506 | 1,492 | 4.76 | 9.66 |
| 160 | 3,740 | 1,591 | 5.09 | 10.31 |
| 170 | 3,973 | 1,691 | 5.41 | 10.96 |
| 180 | 4,207 | 1,790 | 5.73 | 11.61 |
| 190 | 4,441 | 1,890 | 6.05 | 12.26 |
| 200 | 4,674 | 1,989 | 6.38 | 12.91 |
| 210 | 4,908 | 2,089 | 6.7 | 13.56 |
| 220 | 5,142 | 2,188 | 7.02 | 14.21 |
| 230 | 5,376 | 2,287 | 7.35 | 14.85 |
| 240 | 5,609 | 2,387 | 7.67 | 15.5 |
| 250 | 5,843 | 2,486 | 7.99 | 16.15 |
| 260 | 6,077 | 2,586 | 8.32 | 16.8 |
| 270 | 6,310 | 2,685 | 8.64 | 17.45 |
| Screen size aspect ratio: 17:9 | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,348 | 711 | 1.67 | 3.43 |
| 70 | 1,573 | 829 | 1.96 | 4.02 |
| 80 | 1,797 | 948 | 2.25 | 4.60 |
| 90 | 2,022 | 1,066 | 2.54 | 5.19 |
| 100 | 2,247 | 1,185 | 2.83 | 5.77 |
| 110 | 2,471 | 1,303 | 3.12 | 6.36 |
| 120 | 2,696 | 1,422 | 3.41 | 6.94 |
| 130 | 2,921 | 1,540 | 3.70 | 7.53 |
| 140 | 3,145 | 1,659 | 3.99 | 8.11 |
| 150 | 3,370 | 1,777 | 4.28 | 8.70 |
| 160 | 3,595 | 1,896 | 4.58 | 9.28 |
| 170 | 3,819 | 2,014 | 4.87 | 9.87 |
| 180 | 4,044 | 2,133 | 5.16 | 10.45 |
| 190 | 4,269 | 2,251 | 5.45 | 11.04 |
| 200 | 4,493 | 2,370 | 5.74 | 11.62 |
| 210 | 4,718 | 2,488 | 6.03 | 12.21 |
| 220 | 4,943 | 2,607 | 6.32 | 12.79 |
| 230 | 5,168 | 2,725 | 6.61 | 13.38 |
| 240 | 5,392 | 2,844 | 6.90 | 13.97 |
| 250 | 5,617 | 2,962 | 7.20 | 14.55 |
| 260 | 5,842 | 3,080 | 7.49 | 15.14 |
| 270 | 6,066 | 3,199 | 7.78 | 15.72 |
| 280 | 6,291 | 3,317 | 8.07 | 16.31 |
| 290 | 6,516 | 3,436 | 8.36 | 16.89 |
| 300 | 6,740 | 3,554 | 8.65 | 17.48 |
* Projection distances are design specifications, so there is ±5% variation.
DLA-NZ8/DLA-NZ7/DLA-N5 Projection distance
| Screen size aspect ratio: 16:9 | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,328 | 747 | 1.88 | 3.85 |
| 70 | 1,550 | 872 | 2.20 | 4.50 |
| 80 | 1,771 | 996 | 2.52 | 5.15 |
| 90 | 1,992 | 1,121 | 2.84 | 5.80 |
| 100 | 2,214 | 1,245 | 3.16 | 6.45 |
| 110 | 2,435 | 1,370 | 3.49 | 7.10 |
| 120 | 2,657 | 1,494 | 3.81 | 7.75 |
| 130 | 2,878 | 1,619 | 4.13 | 8.40 |
| 140 | 3,099 | 1,743 | 4.45 | 9.05 |
| 150 | 3,321 | 1,868 | 4.77 | 9.70 |
| 160 | 3,542 | 1,992 | 5.09 | 10.35 |
| 170 | 3,763 | 2,117 | 5.41 | 11.00 |
| 180 | 3,985 | 2,241 | 5.73 | 11.65 |
| 190 | 4,206 | 2,366 | 6.05 | 12.30 |
| 200 | 4,428 | 2,491 | 6.38 | 12.95 |
| Screen size aspect ratio: 2.35:1 (Cinematic) | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,402 | 597 | 1.99 | 4.07 |
| 70 | 1,636 | 696 | 2.33 | 4.76 |
| 80 | 1,870 | 796 | 2.67 | 5.44 |
| 90 | 2,103 | 895 | 3.00 | 6.13 |
| 100 | 2,337 | 995 | 3.34 | 6.81 |
| 110 | 2,571 | 1,094 | 3.68 | 7.50 |
| 120 | 2,805 | 1,193 | 4.02 | 8.18 |
| 130 | 3,038 | 1,293 | 4.36 | 8.87 |
| 140 | 3,272 | 1,392 | 4.70 | 9.56 |
| 150 | 3,506 | 1,492 | 5.04 | 10.24 |
| 160 | 3,740 | 1,591 | 5.38 | 10.93 |
| 170 | 3,973 | 1,691 | 5.72 | 11.61 |
| 180 | 4,207 | 1,790 | 6.05 | 12.30 |
| Screen size aspect ratio: 17:9 | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal | W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,348 | 711 | 1.79 | 3.66 |
| 70 | 1,573 | 829 | 2.09 | 4.28 |
| 80 | 1,797 | 948 | 2.40 | 4.90 |
| 90 | 2,022 | 1,066 | 2.70 | 5.52 |
| 100 | 2,247 | 1,185 | 3.01 | 6.14 |
| 110 | 2,471 | 1,303 | 3.31 | 6.75 |
| 120 | 2,696 | 1,422 | 3.62 | 7.37 |
| 130 | 2,921 | 1,540 | 3.92 | 7.99 |
| 140 | 3,145 | 1,659 | 4.23 | 8.61 |
| 150 | 3,370 | 1,777 | 4.54 | 9.23 |
| 160 | 3,595 | 1,896 | 4.84 | 9.84 |
| 170 | 3,819 | 2,014 | 5.15 | 10.46 |
| 180 | 4,044 | 2,133 | 5.45 | 11.08 |
| 190 | 4,269 | 2,251 | 5.76 | 11.70 |
| 200 | 4,493 | 2,370 | 6.06 | 12.32 |
* Projection distances are design specifications, so there is ±5% variation.
Optional Accessories
Replacement Lamp
Replacement Lamp
PK-L2618U
3D Option
RF 3D Glasses
PK-AG3
- Rechargeable Type
- Lightweight-only 38g
- Continuous operation approx.100H
- Features 2D modes
- Range of use: 10m (10 meter radius from the 3D Synchro Emitter)
- Dimensions 170 x 40 x 165 mm (WxHxD)
RF 3D Synchro Emitter
PK-EM2
- Wireless (direct connection with the projector)
- Lightweight-only 20g
- Dimensions 48.9 x 14.5 x 65 mm (WxHxD)
Screen Adjustment Modes
Screen Adjustment Modes
| Brand | Screen | Mode | DLA-NZ9 DLA-NZ8 DLA-NZ7 |
DLA-N5 |
|---|---|---|---|---|
| - | - | 0* | ● | ● |
| - | 1* | ● | ● | |
| - | 2* | ● | ● | |
| - | 3* | ● | ● | |
| CARADA | Classic Cinema White (Gs 1.0) | 4 | ● | ● |
| Brilliant White (Gs 1.4) | 5 | ● | ● | |
| High Contrast Gray (Gs 0.8) | 6 | ● | ● | |
| DA-LITE | MATTE WHITE | 7 | ● | ● |
| HIGH CONTRAST MATTE WHITE | 8 | ● | ● | |
| VIDEO SPECTRA 1.5 | 9 | ● | ● | |
| SILVER MATTE | 10 | ● | ● | |
| HIGH POWER | 11 | ● | ● | |
| DA-MAT | 12 | ● | ● | |
| HIGH CONTRAST DA-MAT | 13 | ● | ● | |
| CINEMA VISION | 14 | ● | ● | |
| HIGH CONTRAST CINEMA VISION | 15 | ● | ● | |
| PEARLESCENT | 16 | ● | ● | |
| DUAL VISION | 17 | ● | ● | |
| AUDIO VISION | 18 | ● | ● | |
| HIGH CONTRAST AUDIO VISION | 19 | ● | ● | |
| HIGH CONTRAST CINEMA PERL | 20 | ● | ● | |
| 3D VIRTUAL GREY | 21 | ● | ● | |
| HD PROGRESSIVE 0.6 | 22 | ● | ● | |
| HD PROGRESSIVE 0.9 | 23 | ● | ● | |
| DIGIS | Hight Contrast Gray (HCG) | 141 | ● | ● |
| Mat Whaite (MW) | 142 | ● | ● | |
| DNP | Supernova 08-85 | 104 | ● | ● |
| Supernova 23-23 | 105 | ● | ● | |
| Dragonfly | DFS-UW (Ultra White) | 177 | ● | - |
| DRAPER | FLEXABLE MATTE WHITE | 24 | ● | ● |
| FIBERGLASS MATTE WHITE | 25 | ● | ● | |
| HIGH CONTRAST GREY | 26 | ● | ● | |
| FLEXIBLE M 1300 | 27 | ● | ● | |
| HIGH DEF GREY | 28 | ● | ● | |
| M 2500 | 29 | ● | ● | |
| Dreamscreen | Ultraweave V6 | 175 | ● | - |
| Ultraweave V7 | 176 | ● | - | |
| EASTONE | E2S | 30 | ● | ● |
| ESECO | 31 | ● | ● | |
| BF-3D Reference | 96 | ● | ● | |
| ELITE | CineWhite | 89 | ● | ● |
| PowerGain | 90 | ● | ● | |
| Elite MaxWhite | 91 | ● | ● | |
| MaxWhite FG | 92 | ● | ● | |
| SilverGrey | 93 | ● | ● | |
| ELUNE VISION | Reference PureBright 4K 240 | 109 | ● | ● |
| Reference Studio 4K 80 | 110 | ● | ● | |
| Reference Studio 4K 100 | 111 | ● | ● | |
| Reference Studio AudioWeave 4K | 112 | ● | ● | |
| AURORA 4K 1.3 | 134 | ● | ● | |
| AURORA PERFORATED 4K 1.3 | 136 | ● | ● | |
| REFERENCE AUDIOWEAVE 4K+ | 137 | ● | ● | |
| Focusview | MP series Gain 1.4 | 181 | ● | - |
| MP series Gain 1.8 | 182 | ● | - | |
| GOO SYSTEMS | Reference White 2.0 | 166 | ● | ● |
| High Contrast 2.0 | 167 | ● | ● | |
| Max Contrast 2.0 | 168 | ● | ● | |
| Ultra Max Theme Park 2.0 | 169 | ● | ● | |
| GRANDVIEW | GRANDVIEW WHITE | 37 | ● | ● |
| WM5 | 153 | ● | ● | |
| GM5 | 154 | ● | ● | |
| WP5 | 155 | ● | ● | |
| WB5 | 156 | ● | ● | |
| WB7 | 157 | ● | ● | |
| BG7 | 158 | ● | ● | |
| GG3 | 159 | ● | ● | |
| WW3 | 160 | ● | ● | |
| RE3 | 161 | ● | ● | |
| AT5 | 162 | ● | ● | |
| AT6 | 163 | ● | ● | |
| AT7 | 164 | ● | ● | |
| AW6 | 165 | ● | ● | |
| Harkness Screens | Matt Plus mini Perf | 170 | ● | ● |
| HiWhite Gain 1.8 | 184 | ● | - | |
| KAUBER | Clear Vision (CLV) | 143 | ● | ● |
| Microperforated White (MPERFW) | 144 | ● | ● | |
| White Flex (WFLEX) | 145 | ● | ● | |
| Gray Flex (GFLEX) | 146 | ● | ● | |
| Gray Pro (GPRO) | 147 | ● | ● | |
| KIKUCHI | WA | 32 | ● | ● |
| AM | 33 | ● | ● | |
| AG | 34 | ● | ● | |
| PG | 35 | ● | ● | |
| MALIBU | 36 | ● | ● | |
| GRACE MATT 100 | 101 | ● | ● | |
| WAC | 102 | ● | ● | |
| SILVER | 107 | ● | ● | |
| Dressty 4K | 115 | ● | ● | |
| Chantilly White (CW) | 173 | ● | - | |
| Lambda | Studio SCIENCE UHD 1.0 WHITE | 135 | ● | ● |
| MicroliteScreen | FRONT 1.2 | 122 | ● | ● |
| FRONT 2.4 | 123 | ● | ● | |
| MULTIVISION | Cinecitta 240 | 149 | ● | ● |
| Woven sound fabric | 150 | ● | ● | |
| High Contrast | 151 | ● | ● | |
| Mattpreview | 152 | ● | ● | |
| ORAY | B3100100 | 38 | ● | ● |
| B1100100 32/100 | 39 | ● | ● | |
| B1100100 25/100 | 40 | ● | ● | |
| BC100100 | 41 | ● | ● | |
| N3100100 MICROPERF | 42 | ● | ● | |
| N3100100 SUPER BLANC | 43 | ● | ● | |
| OS | WG103 | 44 | ● | ● |
| WG107G | 45 | ● | ● | |
| WG201 | 46 | ● | ● | |
| WG206 | 47 | ● | ● | |
| WG207 | 48 | ● | ● | |
| WT101 | 49 | ● | ● | |
| WF201 | 50 | ● | ● | |
| WF202 | 51 | ● | ● | |
| WF203 | 95 | ● | ● | |
| WF301 | 106 | ● | ● | |
| WF302 | 108 | ● | ● | |
| SunnyWhite | 52 | ● | ● | |
| BS101 | 53 | ● | ● | |
| BU102 | 54 | ● | ● | |
| PP201 | 55 | ● | ● | |
| BU202 | 94 | ● | ● | |
| BU201 | 103 | ● | ● | |
| HF102 | 148 | ● | ● | |
| AKIREI BU301 | 183 | ● | - | |
| PROCOLOR | MATTE WHITE C | 56 | ● | ● |
| MATTE WHITE P | 57 | ● | ● | |
| SAYMOUR AV | CENTER STAGE XD | 129 | ● | ● |
| CENTER STAGE UF | 130 | ● | ● | |
| GLACIER WHITE | 131 | ● | ● | |
| MATINEE BLACK | 132 | ● | ● | |
| MATINEE SILVER | 133 | ● | ● | |
| SAYMOUR SCREEN EXCELLENCE | ENLIGHTOR BRIGHT | 124 | ● | ● |
| ENLIGHTOR 4K | 125 | ● | ● | |
| AMBIENT VISIONAIRE 1.2 | 126 | ● | ● | |
| AMBIENT VISIONAIRE 1.3 | 127 | ● | ● | |
| AMBIENT VISIONAIRE 2.1 | 128 | ● | ● | |
| SCREEN RESEARCH | ClearPix2 | 58 | ● | ● |
| SI | Lunar HD.85 | 59 | ● | ● |
| Solar HD1.3 | 60 | ● | ● | |
| Gamma HD1.1 | 61 | ● | ● | |
| Gamma Maestro HD1.1 | 62 | ● | ● | |
| Lunar Maestro HD.85 | 63 | ● | ● | |
| Black Diamond II HD0.8 Black | 64 | ● | ● | |
| Black Diamond II HD1.4 Black | 65 | ● | ● | |
| SLATE .8 | 113 | ● | ● | |
| SLATE 1.2 | 114 | ● | ● | |
| Unity | 172 | ● | ● | |
| Stewart | SnowMatte 100 | 66 | ● | ● |
| Ultramatte 130 | 67 | ● | ● | |
| Ultramatte 150 | 68 | ● | ● | |
| Ultramatte 200 | 69 | ● | ● | |
| StudioTek 100 | 70 | ● | ● | |
| StudioTek 130 G3 | 71 | ● | ● | |
| GrayMatte 70 | 72 | ● | ● | |
| FireHawk SST | 73 | ● | ● | |
| FireHawk G3 | 74 | ● | ● | |
| FireHawk G4 | 120 | ● | ● | |
| GrayHawk RS | 75 | ● | ● | |
| GrayHawk RS G4 | 116 | ● | ● | |
| SILVER 3D | 97 | ● | ● | |
| SILVER 5D | 98 | ● | ● | |
| Tela 80 | 117 | ● | ● | |
| Tiburon G2 | 118 | ● | ● | |
| Reflections 3D | 121 | ● | ● | |
| Reflections Active 170 3D | 99 | ● | ● | |
| HARMONY | 138 | ● | ● | |
| ESTERO 100 | 139 | ● | ● | |
| NEVE | 140 | ● | ● | |
| Phantom HALR | 171 | ● | ● | |
| FireHawk G5 | 174 | ● | - | |
| STUMPFL | FLEX WHITE CI | 100 | ● | ● |
| Theatrehouse | White Matte HD | 76 | ● | ● |
| Theatre Matte HD | 77 | ● | ● | |
| VNX | Black Horizon | 178 | ● | - |
| Black Horizon Bright TV | 179 | ● | - | |
| Black Horizon Acoustic | 180 | ● | - | |
| VUTEC | MATTEWHITE | 78 | ● | ● |
| BRIGHT WHITE | 79 | ● | ● | |
| VUFLEX PRO | 80 | ● | ● | |
| PEARL BRIGHT | 81 | ● | ● | |
| GREYDOVE | 82 | ● | ● | |
| SOUND SCREEN-5 | 83 | ● | ● | |
| SOUND SCREEN-15 | 84 | ● | ● | |
| GREYDOVE SOUND SCREEN | 85 | ● | ● | |
| TWIN VU | 86 | ● | ● | |
| PREFORATED LEADER | 87 | ● | ● | |
| SILVER STAR | 88 | ● | ● |
- * If none of the above applies,please select from 0 to 3
- 0:OFF
- 1:Correct to give a reddish tinge
- 2:Correct to give a greenish tinge
- 3:Correct to give a bluish tinge
- * The Screen Adjustment Mode Table is that recommended by JVC.
- * The exact results from any given the Screen Adjustment Mode Table will be affected to some degree by the installation environment, so this table should be used only as a guide.
- * The mode used for any given screen is not a reflection of the quality of the screen.
Note: As stated in this web site, the DLA-NZ9, DLA-NZ8 and DLA-NZ7 models are the world's first home theatre projectors (as of Sep. 2021) to support 8K60p/4K120p input; according to a research conducted by JVCKENWOOD.
- D-ILA is a registered trademark of JVCKENWOOD Corporation.
- BLU-Escent is a registered trademark of JVCKENWOOD Corporation
- HDR10+™ logo is a trademark of HDR10+ Technologies, LLC.
- ISF is a registered trademark of Imaging Science Foundation, Inc.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
- All other brand or product names may be trademarks and/or registered trademarks of their respective owners.
- Please be aware that, because the D-ILA device is manufactured using highly advanced technologies, 0.01% or fewer of the pixels may be non-performing (always on or off).
- DLA-N5 is equipped with an ultra-high pressure mercury lamp, which may break, emitting a loud noise, when it is subjected to shock or after it has been used for some length of time.
- Please note that, depending on how the projector is used, there can be considerable difference regarding how many hours the light source will operate before requiring replacement.
- An additional payment is required for installation of the projector or a new light source, if necessary.
- All pictures on this brochure are simulated.
- Design and specifications are subject to change without notice.
- Any rights not expressly granted herein are reserved.
