|Storage Media||SDXC/SDHC/SD Memory Card* (not provided)|
|Format||[MOV] Video: MPEG-4 AVC/H.264, Audio (2ch): LPCM
[MP4] Video: MPEG-4 AVC/H.264, Audio (2ch): AAC
[iFrame] Video: MPEG-4 AVC/H.264, Audio (2ch): AAC
[AVCHD] Video : MPEG-4 AVC/H.264, Audio (2ch): Dolby Digital
|Image Sensor||1/2.3-inch 12.8M Back-illuminated CMOS|
|Lens||JVC HD GT LENS, F1.2, 29.5mm Wide|
|Zoom Ratios||Optical: 10x
Digital: 64x (max.)
Dynamic: 19x (In 720p mode)
|Camera Shake Compensation||Optical Image Stabiliser (O.I.S.) and Advanced Image Stabiliser (A.I.S.)|
|LCD||Tiltable 460K-pixel 3.0-inch wide, touch panel operation|
|Video Recording Modes||MOV: 1920x1080/50p, 40Mbps (Video: 36Mbps, Audio: 4Mbps)
MP4: 1920x1080/50p, 36Mbps / 1280x720/50p, 16Mbps
iFrame: 1280x720/25p, 36Mbps
AVCHD Progressive: 1920x1080/50p, 28Mbps
AVCHD: 1920x1080/50i, 17Mbps/5Mbps
MP4 (High Speed) 100/200/250fps: 640x360, 400/500fps: 320x176
|Still Image Sizes||[4:3] 4000x3000 (Ultra Resolution) / 2816x2112 / 2048x1536 / 640x480
[Stills in Video Mode (16:9)] 1920x1080 / 1280x720
|Terminals||HDMI® Out (Mini), AV/Headphone Out, USB2.0, Mic In (Plug-in power), DC In|
|Others||Accessory Shoe for external Mic, light, etc.
Hot Shoe for electronic viewfinder (optional)
|Power Consumption||Approx. 4.4W|
|Dimensions (WxHxL)||110mm x 76mm x 183mm with lens hood, without viewfinder|
|Weight||500g without battery and viewfinder, 625g with battery and viewfinder|
* To record video, SDHC/SDXC card with Class 4 or higher performance is required. For MOV/MP4 1080p/iFrame/AVCHD 50p mode, please use Class 6 or higher (Class 10 recommended). Digital stills can be recorded on SD, SDHC or SDXC cards. SD memory cards (256MB to 2GB), SDHC memory cards (4GB to 32GB) and SDXC memory cards (48GB to 128GB) have been tested for the following brands: Panasonic, Toshiba, SanDisk. UHS Speed Class is not supported, but UHS-I SDHC/SDXC cards can be used in the same manner as standard SDHC/SDXC cards. Note that using other media may result in recording failure or data loss. For compatibility of memory cards, please consult an authorised JVC dealer.
|MOV||1920x1080/50p||7hr||3hr 30min||1hr 40min||50min|
|MP4||1920x1080/50p||7hr 50min||3hr 50min||2hr||55min|
|1280x720/50p||23hr 50min||11hr 20min||5hr 40min||2hr 50min|
|AVCHD||1920x1080/50p||10hr 10min||5hr||2hr 30min||1hr 10min|
|1920x1080/50i (XP)||16hr 20min||8hr 10min||4hr||2hr|
|1920x1080/50i (EP)||57hr 50min||28hr 50min||14hr 40min||7hr 10min|
|High Speed||100fps (640x360)||33hr 30min||16hr 40min||8hr 30min||4hr 10min|
|200fps (640x360)||16hr 40min||8hr 20min||4hr 10min||2hr|
|250fps (640x360)||13hr 20min||6hr 40min||3hr 20min||1hr 40min|
|400fps (320x176)||54hr 30min||27hr 10min||13hr 50min||6hr 40min|
|500fps (320x176)||43hr 30min||21hr 40min||11hr||5hr 20min|
|4:3, 4000x3000 (12M)||9999||9000||4500||2200|
|16:9, 1920x1080 (2M)||9999||9999||9999||5200|
|Speed Mode||Continuous Stills|
|High||50fps, up to 115 images|
|Mid 1||25fps, up to 115 images|
|Mid 2||12fps, up to 115 images|
|Mid 3||6fps, up to 115 images|
|Low||2fps, no limit|
|OS||Microsoft® Windows® XP SP3, Home Edition/Professional (pre-installed)
Microsoft® Windows Vista® SP2, Home Basic/Home Premium (32-bit/64-bit, pre-installed)
Microsoft® Windows® 7 SP1, Home Premium (32-bit/64-bit, pre-installed)
|CPU||Intel® Core™ Duo 1.66GHz or higher(Intel® Core™ 2 Duo 2.13GHz or higher recommended)
*Intel® Core™ i7 2.53GHz or higher is recommended to use MP4/MOV/AVCHD Progressive files and edit video files.
|RAM||Windows® XP: 1GB or higher, Windows Vista®/Windows® 7: 2GB or higher|
|GPU||1024x768 pixels, 16-bit (Hi-colour) or more
(1280x1024 pixels, 32-bit or more, Intel® G965 (on-board VGA) or higher recommended)
|Note||Software for Macintosh is not included. The applicable software is required.
The system requirements information above is not a guarantee that the provided software will work on
all personal computers meeting those requirements.
You can download apps from Google Play (for Android) or from App Store (for iPhone / iPod touch / iPad).
Note: Above information is not a guarantee that all devices using those operating system can use these application features.
Design and specifications subject to change without notice. The photos of the products featured on this website may not be of actual products that are available in your country.
It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Apple, Final Cut Pro, iPad, iPhone, iPod, iPod touch, Mac, Macintosh and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. The "Works with Final Cut Pro X" logo, iFrame logo and iFrame symbol are trademarks of Apple Inc. This product's YouTube™ upload functionality is included under license from YouTube LLC. The presence of YouTube™ upload functionality in this product is not an endorsement or recommendation of the product by YouTube LLC. YouTube and the YouTube logo are trademarks and/or registered trademarks of YouTube LLC.
The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance. "AVCHD", the "AVCHD" logo, "AVCHD Progressive" and the "AVCHD Progressive" logo are trademarks of Panasonic Corporation and Sony Corporation. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The SD, SDHC, and SDXC logos are trademarks of the SD Card Association. QR Code is registered trademark of DENSO WAVE INCORPORATED. All brand names are trademarks, registered trademarks, or trade names of their respective holders. Screen images and print samples on this website are simulated unless otherwise specified.
READY TO SCROLL, AND GO!
Procision GC-PX100 records video at Full HD 1920×1080, but that's just part of the story. Progressive video means that each individual frame is a complete, high-resolution picture unlike interlace. And to ensure maximum quality down to each pixel, Procision uses extremely fast 36Mbps image processing for precise image capture based on larger amounts of visual information. The result is sharply reproduced images at any speed, unlike what you'd expect from a conventional handheld camcorder. What's more, you can even take 2.1M still images while recording video.
Procision GC-PX100 allows you to record in AVCHD 2.0-compliant video, as well as MPEG-4 and .MOV formats, including iFrame compatible 720p. This selection virtually assures compatibility with your preferred codec, in a variety of usage and workflow scenarios. Although not very prevalent, JVC provides .MOV format recording for highest quality in certain post-production usages as its audio is recorded in non-compressed Linear PCM.

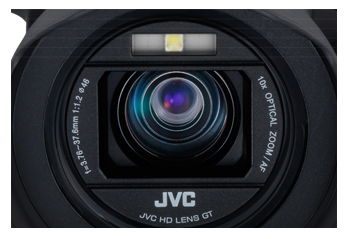

The "eye" of the Procision GC-PX100 is an extremely bright F1.2 lens featuring high quality GT optics developed for maximum affinity with the CMOS image sensor. The ample aperture takes in plenty of light to maintain a bright image even when shooting in indoor situations where ambient lighting is not ideal.

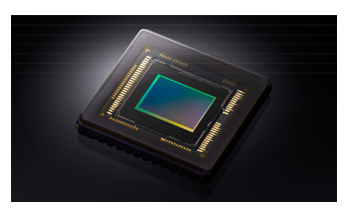

Procision GC-PX100 uses a 1/2.3" 12.8 Megapixel Back-illuminated CMOS sensor — a type of CMOS that effectively avoids the loss of incoming light because its circuitry is moved to a layer behind the photo diodes. This increased visual information is captured by 12.8M-pixels to provide a high-quality, high-resolution picture filled with presence and detail, making it an ideal image source for a variety of applications.
Zoom in for close-ups with full optical quality maintained. Get tight shots without any sacrifice in Full HD resolution. And in instances where extra zoom power is needed, Procision GC-PX100 can magnify up to 19x at 720p resolution using Dynamic Zoom technology. And to avoid a jittery picture even when your hand isn't absolutely steady, GC-PX100 offers Optical Image Stabiliser (O.I.S.) to provide effective results over the entire zoom range.

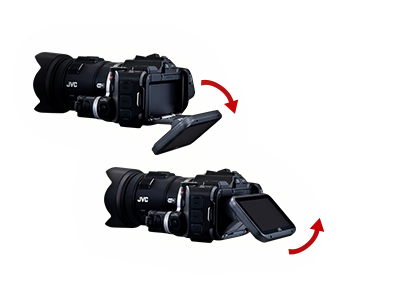

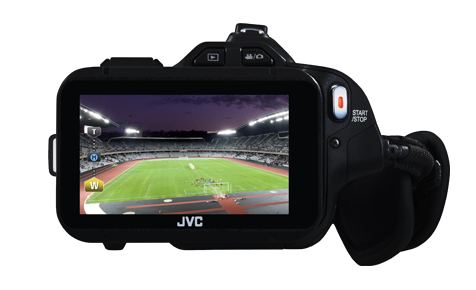

Touch operation makes using Procision easy and intuitive. The articulated screen allows low-angle shots, self-portraits, and easy viewing by more than one person. Supplied with folding hood to reduce glare while outdoors.
Easy Access Design for Battery / Memory Card Replacement
SDXC/SDHC/SD CARD SLOT
TILTABLE 460K-PIXEL 3.0-inch WIDE,
TOUCH PANEL OPERATION
LCD MONITOR HOOD
Procision GC-PX100 gives you the ability to shoot high-speed video for slow motion viewing. Choose from 100fps, 200fps and 250fps at 640 x 360 resolution, as well as 400fps and 500fps at 320 x 176 resolution. When shooting sports or other active scenes, you can select the appropriate speed to allow for later analysis.

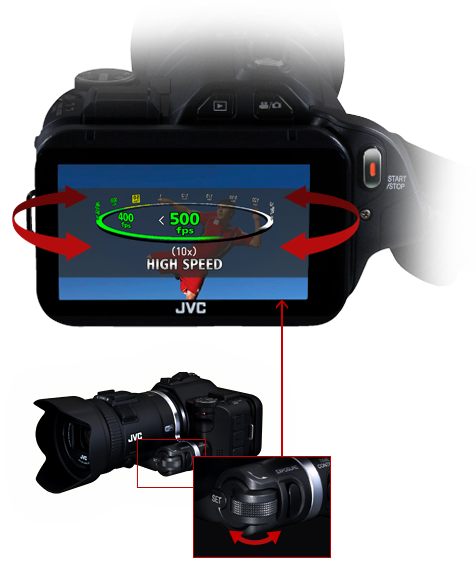

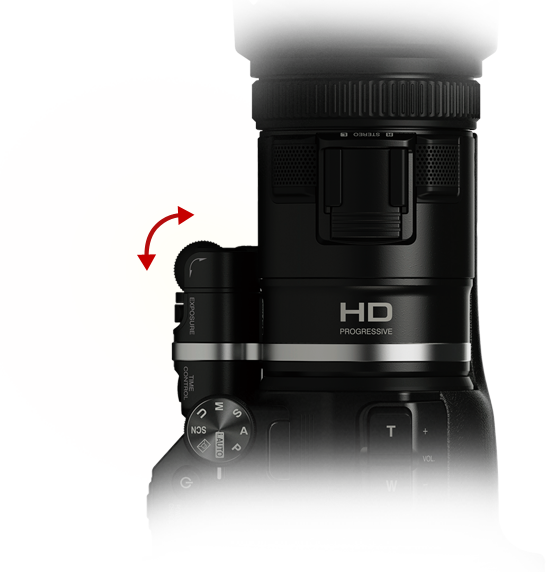

Procision GC-PX100 is equipped with a Time Control Function that lets you flexibly select and change the recording speed by turning a single dial next to the lens. With easy access, you can go from high-speed at 500 frames per second (fps), to Time-Lapse at 1 frame per 80 seconds. You get total control over the time factor, and best of all, it's so easy and intuitive you'll master it in no time.
Since settings can be changed with intuitive controls, you will never miss that important moment.

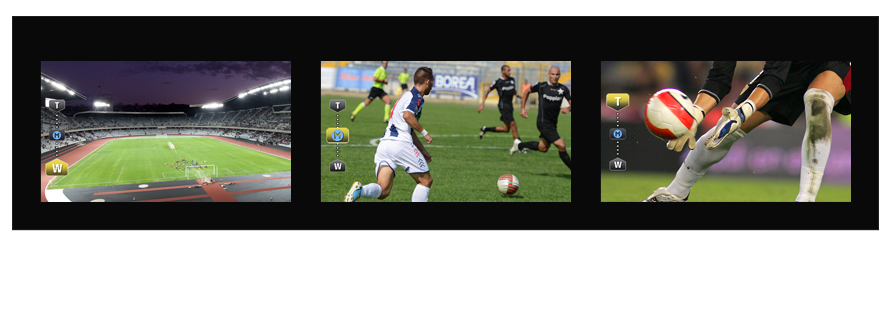

Instantly zooming in to full telephoto, zooming out to full wide, or zooming to an intermediate position you've preset for the camera, is as easy as tapping 1, 2 or 3 on the LCD screen. With speed and precision, you can zoom from a full field view, to just the action on the front line, then to a tight shot of a goal being scored.

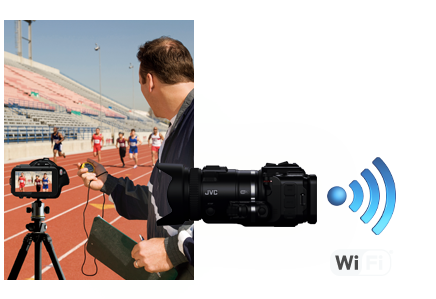

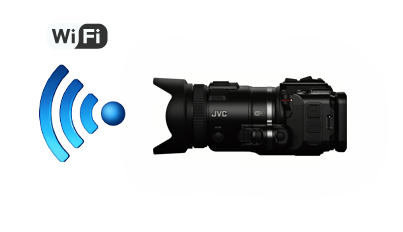

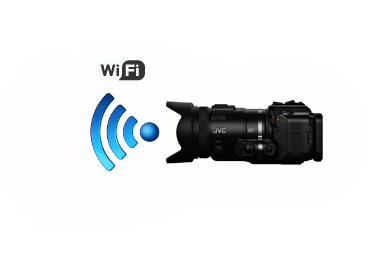

Procision GC-PX100 is equipped with built-in Wi-Fi connectivity, so you can wirelessly transfer video data to a tablet device for in-hand viewing. That means you can leave the camcorder in a fixed position such as mounted on a tripod while reviewing the footage on a large screen. Thanks to the free app "JVC CAM Coach", you can look over the results in the field, and discuss your findings with your team immediately and effectively.
JVC CAM Coach(Free app)
Since Procision GC-PX100 records progressive video at a high data rate of 36Mbps, each individual frame is a high quality still picture. Compared to ordinary slows, the motion is smooth and fluid, and the images are blur free to facilitate analysis. This can be an invaluable tool in spotting minute errors in an athlete's form, and can help everyone from the promising novice to the star player to improve their game.
ORDINARY (INTERLACE) VIDEO

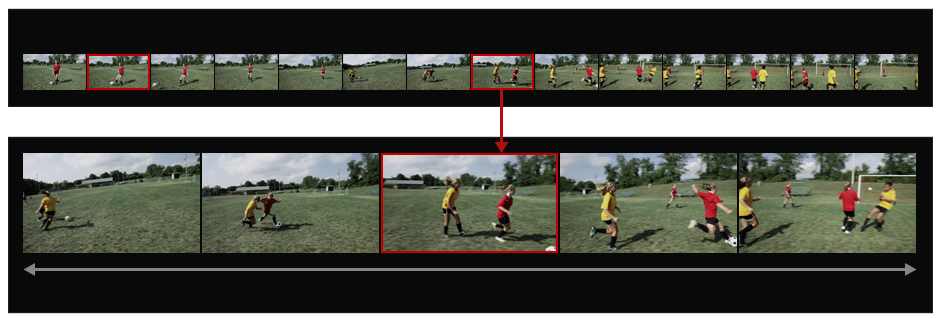

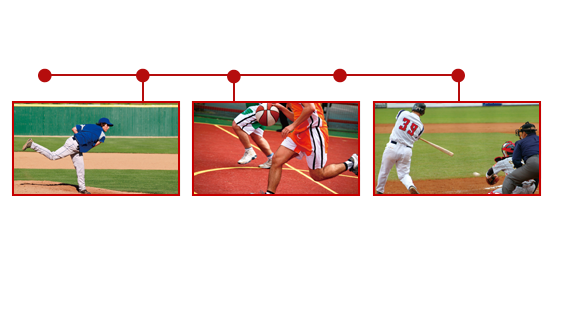

While in the field recording, or while watching recorded footage, you can tag scenes you'll want to view again later by pressing a button. The tagging function writes in an index mark in the recorded data that you can instantly jump to at any time.

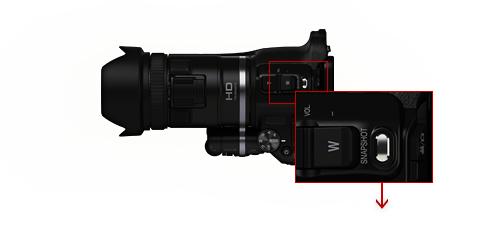

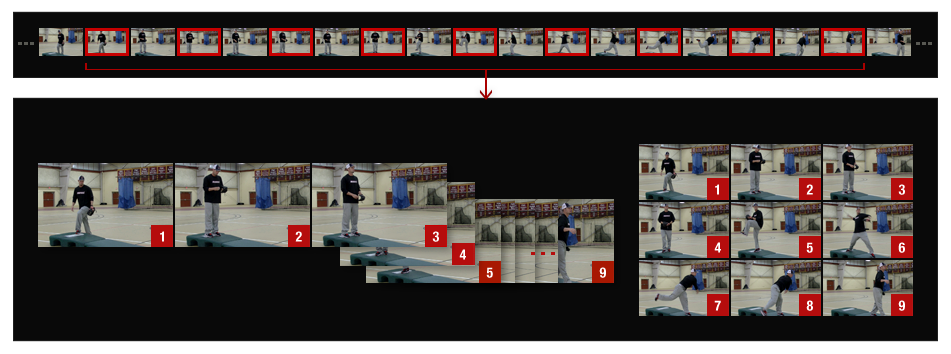

Procision GC-PX100 lets you grab bursts of 9 still images from video at the touch of a button, similar to the motor drive on an SLR still camera. These can be output in the form of 9 individual full-size images, or a single image containing 9 index photos in it, so you can choose the style that best suits your needs.
9 INDIVIDUAL FULL-SIZE IMAGES
9 INDEX PHOTOS IN A SINGLE IMAGE

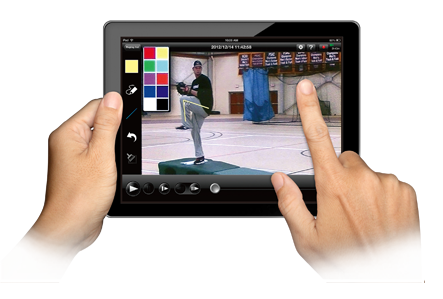

The ultimate assistant coach that every coach has dreamed of is right here in this freely downloadable app. By installing it on your iPad or Android tablet, you can transfer videos from the camcorder via ad-hoc wireless network and then draw onto the tablet's playback screen using the app's Coaching Board function. It will help coaches to visually illustrate a play formation or point out areas where an athlete needs to improve.
* The specifications in the video may be different from the one locally available.
JVC CAM Coach(Free app)- For Android tablet with version 4.2
RYAN VOGELSONG USES THE PX100

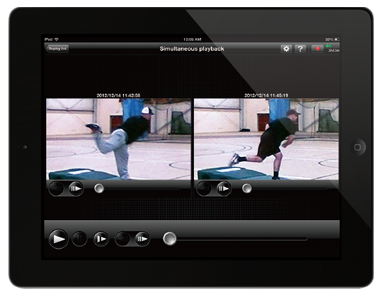

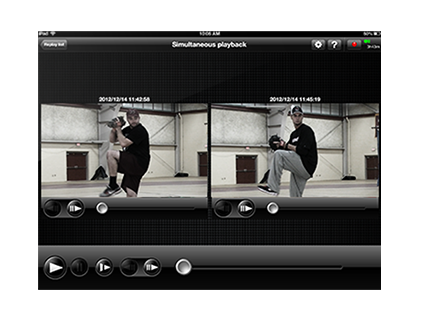

Another feature of the JVC CAM Coach app is the Simultaneous Playback function, which enables two videos (already transferred to the tablet) to be viewed side-by-side simultaneously. Immediate comparison will help you spot inconsistencies in the same athlete's form over time, or analyse differences between two athletes to find way to improve performance.
JVC CAM Coach(Free app)- For Android tablet with version 4.2

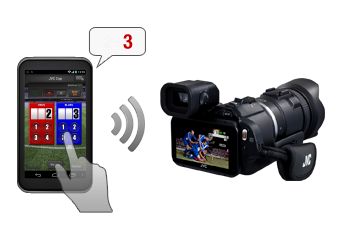

Based on index marking technology, this function lets you use your smartphone to keep a running tally of the score of a game in progress while you record it on Procision GC-PX100. Freely downloadable app "Wireless sync." will be provided with scoring templates to accommodate a variety of sports, including those with games and/or sets within a match, or different point values for different types of plays. Each tap on your smartphone will input the corresponding number of points to keep you on top of the game.
Applicable for sports with set count, tennis and more.
Wireless sync.(Free app)- For Android phone / tablet with version 2.3 or later
SHOOTING FUNCTION 01
A compact, portable stand-alone
battery charger for the Data Battery
HDMI®-HDMI® mini cable, 1.5m
-High sensitivity, low S/N ratio,
high dynamic range and flat
Note: Not all accessories available in every region. Please check with your dealer.
